0.25mm Slot Size Wire Wrapped Screen 316L Grade High Mechanical Load Capacity
Product Description:
Wire Wrap Johnson screen is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.
.
Specification:
| Material | Stainless steel |
| Grade | 304 |
| O.D | 273 mm |
| Size | 10 " |
| Slot size | 1.0 mm |
| Length | 5.8m |
| End connection | Welded rings |
| Wire size | 118 # |
| Support rod | 140 # |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
O.D.: 4, 6, 8, 10, 12 intch and as request.
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 50mm-6000mm
End Connection: welded rings or thread couplings ( male / female )
Specification of the wrap wire:1*2mm, 2*3mm, 2.2*3.5mm, 3*4.6mm and so on.
Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.
Special specification can be made according to your need.
Advantages:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Industry:
water well
water supply systems
Refining & petrochemical
Product Tags:
|
|

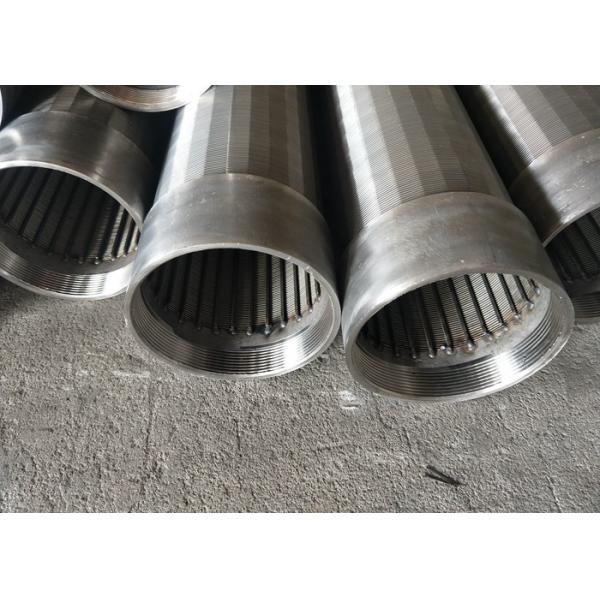

Stainless Steel Wire Wrapped Screen With High Mechanical Strength Images
|
