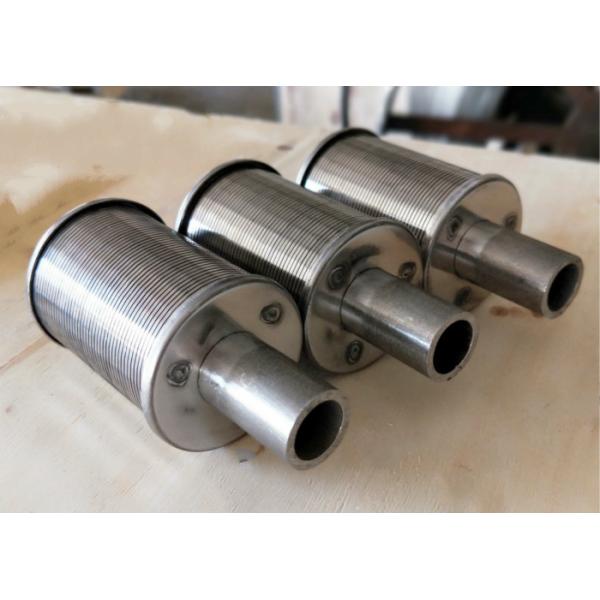

Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser
Johnson Screen Filter Nozzle Product Description:
| Product Name |
Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser |
| Material |
Stainless Steel |
| Grade |
304 |
| Slot size |
0.25mm |
| Diameter |
53 mm |
| Screen Lenth |
45 mm |
| Total Length |
115 - 110 mm |
| Thread Size |
1 1/4 " , 32 mm |
| Nutsert |
1 PCS, 2 PCS |
| Gasket |
1 PCS steel gasket,1 PCS rubber mat |
Johnson Screen Filter Nozzle Characteristic:
Stainless Steel 304 Johnson Screen Filter Nozzle Used In Water Distributor is welded with Johnson well screen, thread pipe and steel panel through special welding process. The Johnson well screen is the profile wedge wire screen ,the wire and the support rod is V shape , so the screen filter surface outside is smaller than inside, so that the screen nozzle is not easy to jam. The thread pipe is made by international standard.1 “,1 1/4 “, 2 1/4 “ and so on.
Johnson Screen Filter Nozzle Advantages:
Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser have many advantages as below:
Strong and durable, with long service life.
The gap is even, no leakage of resin, no running material.
High opening rate can meet the requirement of large flow.
The structure is varied and meet different design requirements.
Johnson Screen Filter Nozzle OEM service:
Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser support OEM
Please tell us the specification of the water cap you need and we will help you to process the high quality products.
Custom range
Material: mainly stainless steel 304, 316L, 321, Hastelloy B, C and other materials.
Gap: 0.2-0.25mm, can be according to customer needs.
Johnson Screen Filter Nozzle Use:
Stainless Steel 304 Johnson Screen Filter Nozzle Used In Cloth Degasser is American technology.water treatment, chemical, petrochemical, pharmaceutical, biotechnology, power plant, ion exchange, yin-yang bed, mixed bed.
Johnson Screen Filter Nozzle Regular Specifications:
| Type |
Slot size |
Specifications |
Flow filter area
0.2mm slot ( reference) |
| D |
H |
L |
M |
| HY-PT-45-A |
0.2-0.5 |
45 |
25 |
90 |
25 |
280 |
| HY-PT-45-B |
0.2-0.5 |
45 |
35 |
100 |
25 |
380 |
| HY-PT-45-C |
0.2-0.5 |
45 |
45 |
110 |
25 |
550 |
| HY-PT-45-D |
0.2-0.5 |
45 |
35 |
55 |
25 |
380 |
| HY-PT-45-E |
0.2-0.5 |
45 |
45 |
65 |
25 |
550 |
| HY-PT-53-A |
0.2-0.5 |
53 |
35 |
100 |
25 |
450 |
| HY-PT-53-B |
0.2-0.5 |
53 |
45 |
110 |
25 |
580 |
| HY-PT-53-C |
0.2-0.5 |
53 |
55 |
120 |
32 |
700 |
| HY-PT-57-A |
0.2-0.5 |
57 |
35 |
100 |
32 |
530 |
| HY-PT-57-B |
0.2-0.5 |
57 |
45 |
110 |
32 |
680 |
| HY-PT-57-C |
0.2-0.5 |
57 |
55 |
120 |
32 |
830 |
| HY-PT-70-A |
0.2-0.5 |
70 |
40 |
105 |
32 |
650 |
| HY-PT-70-B |
0.2-0.5 |
70 |
55 |
115 |
32 |
810 |
